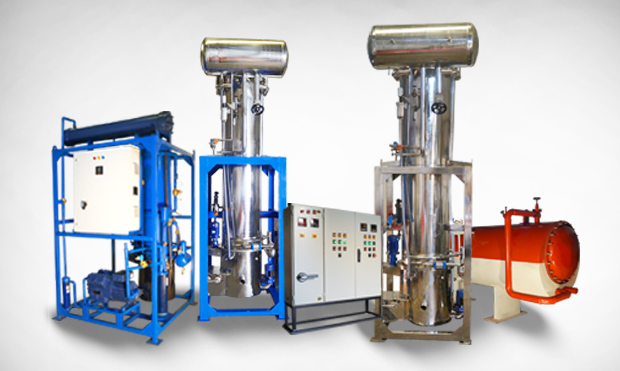

Tube Ice Plant

Tube Ice Plant

Prithvi Precision Engineering Pvt.Ltd. is specialised in designing and manufacturing everything from a single tube ice machine to a complete turnkey tube ice plant with an ice production capacity range of 1 TPD to 100 TPD or more.

We have installed and started-up tube ice plants for chemical companies, concrete companies, food processing companies, fisheries, poultryprocessing, meat plants etc.

Tube ICE Plant Range

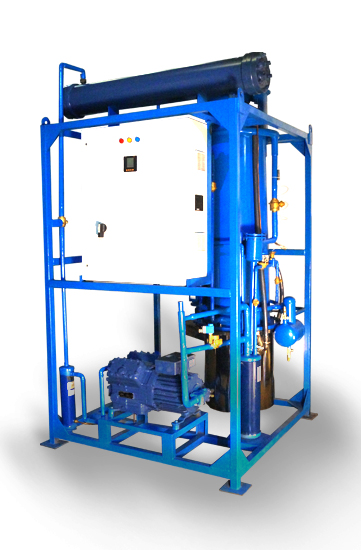

Tube Ice 2 TPD-MS

Tube Ice Plant 2 TPD-MS

Tube Ice 2 TPD-MS

Tube Ice Plant 20 TPD-MS

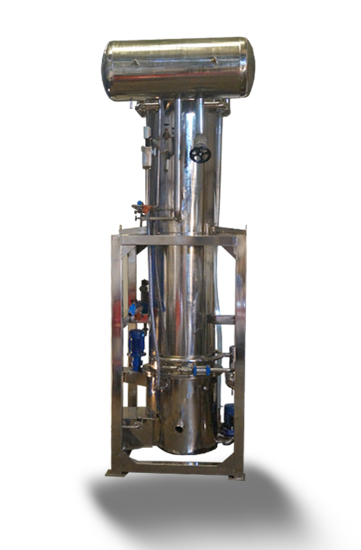

Tube Ice 40 TPD-sS

Tube Ice Plant 40 TPD-sS

Specification

Product Model No Material of Construction Capacity Power Features Diamentions-LBH
Tube Ice Machine PPE-1TPD-F MS/SS 1 - TPD 440 VOLT 50HZ 3PHASE 9KW L 1000MM XB 1200 X H1500
PEE-2TPD-F MS/SS 2 - TPD 440 VOLT 50HZ 3PHASE 15KW L 1000MM XB 1200 X H1500
PPE-3.5TPD-Freon MS/SS 3.5 - TPD 440 VOLT 50HZ 3PHASE 18KW 1100 X 1300 X 2000
PPE-5 TPD-F MS/SS 5 - TPD 440 VOLT 50HZ 3PHASE 26KW 1200 X 1400 X 2000
PPE-5 TPD-Ammonia MS/SS 5 - TPD 440 VOLT 50HZ 3PHASE 26KW 1200 X 1400 X 2000
PPE-10 TPD-F MS/SS 10 - TPD 440 VOLT 50HZ 3PHASE 48KW As per Stnd site conditions
PPE-10 TPD-A MS/SS 10 - TPD 440 VOLT 50HZ 3PHASE 48KW As per Stnd site conditions
PPE-20 TPD-F MS/SS 20 - TPD 440 VOLT 50HZ 3PHASE 63KW As per Stnd site conditions
PPE-20 TPD-A MS/SS 20 - TPD 440 VOLT 50HZ 3PHASE 63KW As per Stnd site conditions
PPE-25 TPD-A MS/SS 25 - TPD 440 VOLT 50HZ 3PHASE 89KW As per Stnd site conditions
PPE-25 TPD-F MS/SS 25 - TPD 440 VOLT 50HZ 3PHASE 89KW As per Stnd site conditions
PPE-40 TPD-A MS/SS 40 - TPD 440 VOLT 50HZ 3PHASE 110KW As per Stnd site conditions
PPE-60 TPD-A MS/SS 60 - TPD 440 VOLT 50HZ 3PHASE 149KW As per Stnd site conditions
MS/SS 60 ABOVE UPTO 120 ON REQUEST As per Stnd site conditions

Experience the best

  • Stainless steel tube ice machine
  • Water Distributors: Made up of elastic material which creates acontinuous uninterrupted peripheral seal between the tube ends and water distributor.
  • Accumulator with insulation
  • Refrigerant: Ammonia / Freon
  • Float switch
  • Freezer : Of high quality stainless steel for all water and ice contact surfaces providing
  • Cutter : Stainless steel cutters driven by gear motors are uniquely designed to produce
  • Pumping Tank (Water Pumps) : Centrifugal cast in iron pump large enough to circulate many times the quantity of water to be frozen producing crystal clear ice crystals
  • Control Panel : Gives use access to the automatic electrical system, which performs sequences for freezing and thawing precisely and dependably year after year.
